RTD stands for Resistance Temperature Detector. RTD sensor is
basically a temperature sensing device in which change in
resistance of the detector element is calibrated with temperature.
Thus, a change in resistance directly gives the value of
temperature of the system. It is used to measure the temperature of
a system and also known as Resistance Thermometer.
Quick detail:
Name:Mineral Insulated RTD Cable
Type: Pt100
Conductor material: Ni
Insulator: 99.6% high purity MgO
Core number: 3, 4, 6,8
Sheath material: SS321(SS304), SS316
Dia(mm): 3.0mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Place of Origin: Zhejiang, China (Mainland)
Eco-friendly: Yes
MOQ: 100m
Certificate: ISO
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T, Western Union, L/C
Nominal Dimension of Thermocouple and RTD Cable:
| Dia | Wall thickness | Conductor Dia | Purity of MgO | Insulated Resistance |
| 0.5±0.025 | ≥10%D | ≥15%D | ≥99.4% | Room temp. ＞100MΩ/75V |
| 1.0±0.025 |
| 1.5±0.025 |
| 1.6±0.025 |
| 2.0±0.025 |
| 3.0±0.030 | Room temp. ＞100MΩ/500V 500℃ ＞5MΩ/500V |
| 4.0±0.045 |
| 4.8±0.045 |
| 5.0±0.045 |
| 6.0±0.060 |
| 6.4±0.060 |
| 8.0±0.080 |
Weight Table:
| Type | Dia. | SS304 SS316 |
| 3 core | 4 core | 6 core |
| Ni | 3.0 | 0.045 | 0.039 | 0.040 |
| 3.2 | 0.051 | 0.046 | 0.046 |
| 4.0 | 0.075 | 0.074 | 0.074 |
| 4.8 | 0.108 | 0.105 | 0.107 |
| 5.0 | 0.116 | 0.113 | 0.115 |
| 6.0 | 0.180 | 0.164 | 0.163 |
| 6.4 | 0.203 | 0.204 | 0.191 |
| 8.0 | 0.297 | 0.363 | 0.301 |
What is an RTD Sensor?
The term RTD stands for Resistance Temperature Detector. This
sensor is also known as Resistance thermometer. This sensor is used
to measure the temperature.
Usually, they are available as a length of fine wire made of
platinum nickel or copper, wrapped around a ceramic or glass core.
This sensor makes use of the temperature/resistance relationship of
the wire to measure the temperature.
Applications of RTD:
RTD sensor is used in automotive to measure the engine temperature,
an oil level sensor, intake air temperature sensors. In
communication and instrumentation for sensing the over the
temperature of amplifiers, transistor gain stabilizers, etc…
RTD is used in power electronics, computer, consumer electronics,
food handling and processing, industrial electronics, medical
electronics, military, and aerospace.

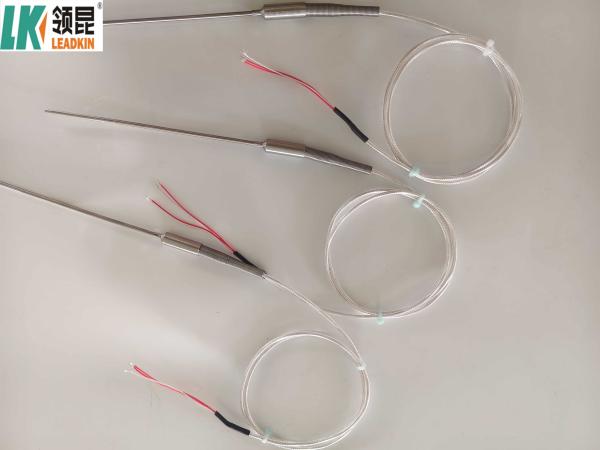

Product Pictures:
