Quick Details:

Core number: 2, 4, 6

Dia(mm): 0.5mm to 12.7mm

Usage: for thermocouple making

Insulator: 99.6% high purity MgO

Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T,Western Union, L/C

Sheath material: SS321(SS304), SS316

Application: connecting with thermocouple and instrument machine
Conductor material: NiCr-NiSi,NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstanta

Name:Type K/N/T/J/B/S/E Thermocouple Mineral Insulated Cable (MI cable)

Type for Sheath Wire Type K

Accuracy for Sheath Wire Type K

Mineral insulated thermocouple cables are specialized cables used for temperature measurement in extreme environments. Here’s a detailed overview of their characteristics, construction, and applications:

Characteristics

1. Construction:

   • Mineral Insulation: The cable consists of a thermocouple wire (typically composed of two different metals) surrounded by a mineral insulation material, often magnesium oxide (MgO). This insulation provides excellent thermal conductivity and electrical insulation.
   • Metal Sheath: The entire assembly is enclosed in a metal sheath, usually made of stainless steel or inconel, which provides mechanical protection and resistance to corrosive environments.
   • Temperature Range: These cables can operate over a wide temperature range, typically from -200°C to +1200°C, depending on the materials used.

2. Durability:

   • High Resistance to Harsh Conditions: They are resistant to moisture, chemicals, and mechanical impacts, making them suitable for use in harsh industrial environments.
   • Vibration and Shock Resistance: The robust construction allows them to withstand vibrations and shocks, which is essential in many industrial applications.

3. Fast Response Time:

   • The design of mineral insulated thermocouples allows for quick temperature response due to the efficient heat transfer properties of the mineral insulation.

4. Accuracy and Stability:

   • They provide high accuracy and stability over time, making them reliable for critical temperature measurements.

5. Customization:

   • Available in various configurations and materials, allowing for customization to suit specific measurement needs and environments.

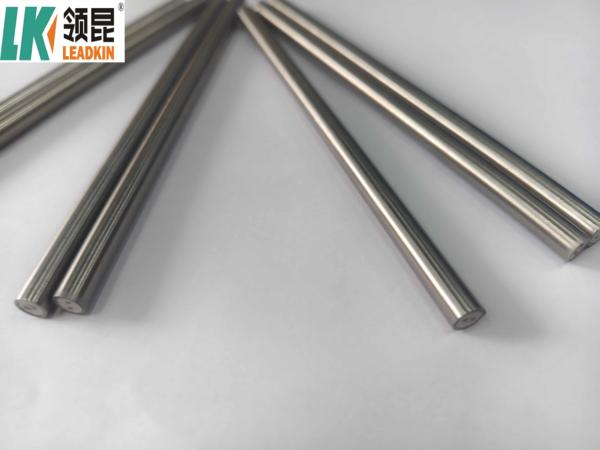

Product Pictures

Company Information:

A. Main Products

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Exihibition

Support and Services:

Our Mineral Insulated Thermocouple Cables are designed to provide accurate temperature measurements even in high-temperature environments. With a variety of options for thermocouple types, sheath materials, and insulation materials, we offer a custom solution to fit your specific needs. Our cables are also highly durable and resistant to vibration and shock.

We provide technical support and services for our Mineral Insulated Thermocouple Cables, including:

• Selection guidance for thermocouple type, sheath material, and insulation material
• Assistance with cable installation and maintenance
• Troubleshooting and problem-solving
• Repair and warranty services

Our team of experts is dedicated to ensuring the highest level of customer satisfaction and providing reliable solutions for your temperature measurement needs.
