Quick Details:
Type: K/N/E/J/T/S/R/B
Place of Origin: Zhejiang, China (Mainland)
Accuracy: I-0.4%t, II-0.75%t, III-1.5%t
Core number: 2,3,4,6
Inorganic mineral insulating lead material: Ni, Cu
Insulator: 99.6% high purity MgO
Type for Sheath Wire Type K:
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| SS310 Inconel600 | 0.5-1.0 | 500 |
| 1.5-3.2 | 800 |
| 4.0-6.4 | 900 |
| 8.0-12.7 | 1000 |
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| SS310 Inconel600 | 0.5-1.0 | 500 |
| 1.5-3.2 | 800 |
| 4.0-6.4 | 900 |
| 8.0-12.7 | 1000 |
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Different temperature measuring media and service conditions have
an impact on the service life and temperature range of armored
thermocouples, the data in the table is only recommended data.
Accuracy for Sheath Wire Type K
| Type | Class I | Class II |
| Accuracy | Temp.Range | Accuracy | Temp.Range |
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ |
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ |
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ |
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ |
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ |
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ |
Mineral insulated (MI) cables work based on several key principles
related to their construction and the properties of their
materials. The following is a detailed explanation:
Mineral insulated thermocouple cable is a type of thermocouple
assembly that uses a mineral insulation material, typically
magnesium oxide (MgO), to provide electrical insulation between the
thermocouple wires. This design allows for high-temperature
measurements and provides several advantages over traditional
thermocouple cables. Here are some key features and benefits:
Features:
High-Temperature Tolerance: Mineral insulated thermocouple cables
can withstand extreme temperatures, often exceeding 1000°C
(1832°F), making them suitable for industrial applications in harsh
environments.
Durability: The outer sheath, typically made of stainless steel or
other alloys, offers excellent mechanical protection, making it
resistant to abrasion, corrosion, and other physical stresses.
Compact Design: The small diameter of the cable allows for easy
installation in tight spaces and enables better thermal response
times.
Low Thermal Mass: Due to the compact construction, these cables
have low thermal mass, which helps in achieving faster response
times to temperature changes.
Versatility: They can be used in a variety of applications,
including furnaces, kilns, ovens, and other high-temperature
processes.
- Conductor: MI cables typically use a copper or aluminum conductor at the
core. This conductor is responsible for carrying the electrical
current. Copper is often preferred for its high electrical
conductivity, which allows for efficient transmission of
electricity with low resistance and minimal power loss.
- Insulation: The conductor is surrounded by a layer of mineral insulation,
usually made of magnesium oxide (MgO). MgO has excellent thermal
and electrical insulation properties. It provides a high level of
electrical resistance, preventing the current from leaking out and
ensuring that it remains within the conductor.
- Sheath: The outermost layer is a metal sheath, commonly made of copper,
stainless steel or aluminum. The sheath serves multiple purposes.
It provides mechanical protection to the cable, safeguarding the
inner components from physical damage, such as impacts, abrasion
and moisture ingress.

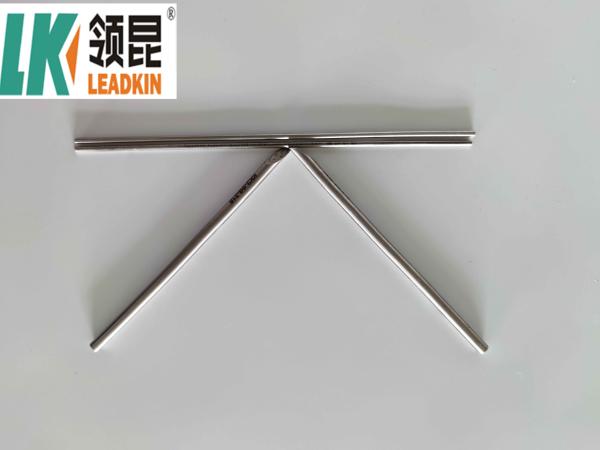

Product Pictures:
Company Information:
A. Main Products
B. Package
We add heat shrink tubing and plastic film to make sure high
insulated resistance.
Except marking notes, we also have pass card and test report for
every coil cable.
C. Mi cable Production line
We have high - quality professional products, as well as advanced
product lines and equipments. All of the products comply with
international quality standards and are greatly appreciated in a
variety of different markets throughout the world.Along the
increasing market demands, we continuously satisfy customers by
updating products to improve prouduction systems, improve quality.
Support and Services:
Our Mineral Insulated Thermocouple Cables are designed to provide
accurate temperature measurements even in high-temperature
environments. With a variety of options for thermocouple types,
sheath materials, and insulation materials, we offer a custom
solution to fit your specific needs. Our cables are also highly
durable and resistant to vibration and shock.
We provide technical support and services for our Mineral Insulated
Thermocouple Cables, including:
- Selection guidance for thermocouple type, sheath material, and
insulation material
- Assistance with cable installation and maintenance
- Troubleshooting and problem-solving
- Repair and warranty services
Our team of experts is dedicated to ensuring the highest level of
customer satisfaction and providing reliable solutions for your
temperature measurement needs.
