    Type K / N / T / J / S / E Thermocouple Mineral Insulated Cable MI Cable

    Ask Lasest Price
    Brand Name : LEADKIN
    Model Number : LK-KK
    Certification : ISO9001, IATF16949, CE
    Price : USD 1.5-3.5M
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
    Supply Ability : 1,000,000M/year
    Delivery Time : 2-7 working days
    MOQ : 100M
    • Product Details
    • Company Profile

    Type K / N / T / J / S / E Thermocouple Mineral Insulated Cable MI Cable

    Quick Details:

    Core number: 2, 4, 6

    Dia(mm): 0.5mm to 12.7mm

    Usage: for thermocouple making

    Insulator: 99.6% high purity MgO

    Making sample time: all type in stock
    Trade term: FOB, EXW, CIF, CFR
    Payment term: T/T,Western Union, L/C

    Sheath material: SS321(SS304), SS316

    Application: connecting with thermocouple and instrument machine
    Conductor material: NiCr-NiSi,NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstanta

    Name:Type K/N/T/J/B/S/E Thermocouple Mineral Insulated Cable (MI cable)


    Type for Sheath Wire Type K

    Product NameCodeTypeShaeth MaterialOutside Dia.Temperature
    NiCr-NiSi /NiCr-NiAlKKKSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    SS310 Inconel6000.5-1.0500
    1.5-3.2800
    4.0-6.4900
    8.0-12.71000
    NiCrSi-NiSiNKNSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    SS310 Inconel6000.5-1.0500
    1.5-3.2800
    4.0-6.4900
    8.0-12.71000
    NiCr-KonstantanEKESS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    Fe-KonstantanJKJSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    Cu-KonstantanTKTSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    RhPt10-PhSKSInconel6006.0-12.71100

    Accuracy for Sheath Wire Type K

    TypeClass IClass II
    AccuracyTemp.RangeAccuracyTemp.Range
    K±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-1000℃±0.75%375℃-1000℃
    N±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-1000℃±0.75%375℃-1000℃
    E±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-800℃±0.75%375℃-800℃
    J±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-800℃±0.75%375℃-800℃
    T±0.5℃-40~125℃±1.0℃-40~125℃
    ±0.4%125℃-350℃±0.75%125℃-350℃
    S0-1100℃±1.0℃0-1100℃±1.5℃

    1. Application


    Thermocouple mineral insulated cable is widely applied in industry, are used for power and control circuits of critical equipment, such as Temperature measurement devices; a proven choice for high temperature probe fabrication.

    2. Contruction


    Itis made by placing one or more wire conductors inside a circular copper tube and filling the intervening spaces with dry magnesium oxide powder.

    The overall assembly is then pressed between rollers to reduce its diameter (and increase its length).


    A mineral-insulated (MI) thermocouple cable is a specialized type of cable used for temperature measurement in various industrial applications. It consists of two dissimilar metal wires (typically different alloys) joined together at one end to form a thermocouple junction. The junction is then enclosed within a mineral insulation material, typically magnesium oxide (MgO), which provides electrical insulation and mechanical protection.

    The mineral insulation is packed tightly around the thermocouple wires, ensuring good thermal conductivity between the wires and the outer sheath. The outer sheath is usually made of a corrosion-resistant material such as stainless steel or Inconel.

    The MI construction offers several advantages for thermocouple applications. It provides excellent resistance to high temperatures, mechanical stress, and environmental hazards. The mineral insulation helps to protect the thermocouple wires from oxidation, contamination, and moisture ingress, ensuring accurate and reliable temperature measurements.

    Mineral-insulated thermocouple cables can be customized with different wire materials and sheath sizes to suit specific temperature ranges and environmental conditions. They are commonly used in industries such as petrochemical, power generation, metal processing, and aerospace, where precise and robust temperature measurement is required.

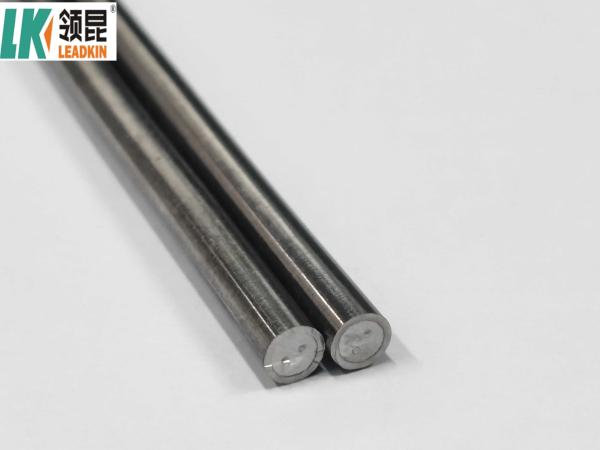

    Product Pictures


    Type K / N / T / J / S / E Thermocouple Mineral Insulated Cable MI Cable


    Company Information:

    A. Main Products


    B. Package


    We add heat shrink tubing and plastic film to make sure high insulated resistance.

    Except marking notes, we also have pass card and test report for every coil cable.



    Type K / N / T / J / S / E Thermocouple Mineral Insulated Cable MI Cable


    C. Exihibition


    Product Advantage:

    1:High temperature resistance, flexible, anti-corrosion, fast and accurate temperature measurement.

    2:High temperature resistant Extension wire.

    3:Probe length can be customized, probe can be bent.

    4:Arbitrary bending, high temperature resistance, long service life, fast response speed, fixed spring.

    5:High Precision Temperature control probe .

    6:Quick response.
