Quick Details:

Type: K/N/E/J/T/S/R/B

Place of Origin: Zhejiang, China (Mainland)

Accuracy: I-0.4%t, II-0.75%t, III-1.5%t

Core number: 2,3,4,6

Inorganic mineral insulating lead material: Ni, Cu

Type for Sheath Wire Type K:

Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples, the data in the table is only recommended data.

Accuracy for Sheath Wire Type K

Product Description:

1. Temperature Range:

   • Thermocouples can measure a wide range of temperatures, from cryogenic levels (like Type T) to very high temperatures (like Type B, which can measure up to 1,800°C or higher).

2. Response Time:

   • Thermocouples typically have a fast response time, making them suitable for dynamic temperature measurements.

3. Advantages:

   • Simple construction and ruggedness.
   • Wide temperature range and availability in various configurations.
   • Relatively low cost and ease of installation.

4. Limitations:

   • Accuracy can be affected by factors such as calibration, wire insulation, and the quality of the connections.
   • The output

• Composition: Platinum and a small percentage of Rhodium (typically 10%).
• Temperature Range: 0°C to +1600°C (32°F to +2912°F).
• Applications: High-precision applications, especially in laboratories and industrial settings for high temperatures.
• Thermocouple Cable Characteristics
• Construction: Thermocouple cables consist of two wires made from the specific alloys corresponding to the thermocouple type. The wires are insulated to prevent interference and maintain the accuracy of the readings.
• Insulation Materials: Common insulation materials include PVC, PTFE, fiberglass, and ceramic, depending on the temperature range and application requirements.
• Color Coding: Thermocouple wires are often color-coded according to standards, which helps in identifying the type of thermocouple easily. For example, Type K is typically yellow and Type J is usually red and white.
• Compatibility: It's crucial to use the correct thermocouple cable that matches the thermocouple type to avoid measurement inaccuracies.
• Applications of Thermocouple Cables
• Thermocouple cables are widely used in various industries, including:
• Manufacturing: Monitoring process temperatures in furnaces, kilns, and reactors.
• Food Processing: Ensuring food safety by maintaining specific temperature ranges.
• HVAC: Monitoring temperatures in heating, ventilation, and air conditioning systems.
• Metallurgy: Measuring temperatures in heat treatment processes.

Applications :
RTD and Thermocouple Sensors Constructed Using MI Cable are Used Extensively in Various Applications such as:.

• Solid waste incinerators.
• Sintering powdered metals.
• Firing ceramic materials.
• Gas or oil fired furnaces.
• Fuel fired heat exchangers.
• Box furnaces.
• Nuclear or hydrocarbon based energy plant.

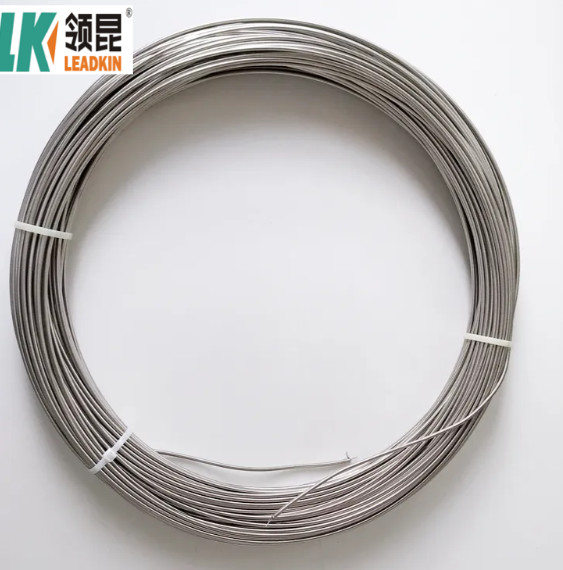

Product Pictures:

Company Information:

A. Main Products

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

C. Mi cable Production line

We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.

Support and Services:

Our Mineral Insulated Thermocouple Cables are designed to provide accurate temperature measurements even in high-temperature environments. With a variety of options for thermocouple types, sheath materials, and insulation materials, we offer a custom solution to fit your specific needs. Our cables are also highly durable and resistant to vibration and shock.

We provide technical support and services for our Mineral Insulated Thermocouple Cables, including:

• Selection guidance for thermocouple type, sheath material, and insulation material
• Assistance with cable installation and maintenance
• Troubleshooting and problem-solving
• Repair and warranty services

Our team of experts is dedicated to ensuring the highest level of customer satisfaction and providing reliable solutions for your temperature measurement needs.
