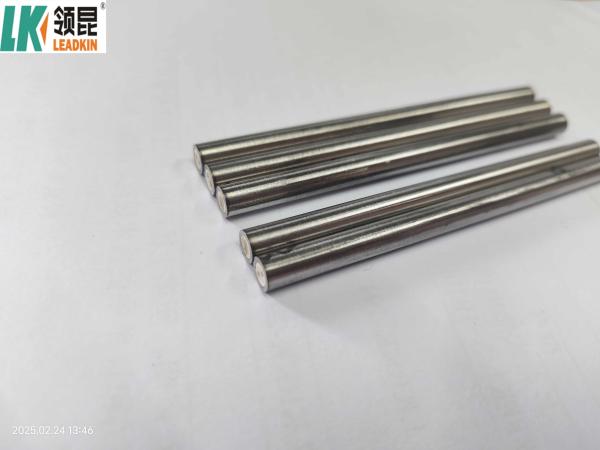

Thermocouple Cable For High Temperature Measurement Outside Dia 0.5-12.7mm And Cable Length 1-5m Or Customized

Ningbo Leadkin Instrument Complete Sets of Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Thermocouple Cable For High Temperature Measurement Outside Dia 0.5-12.7mm And Cable Length 1-5m Or Customized from wholesalers

    Buy cheap Thermocouple Cable For High Temperature Measurement Outside Dia 0.5-12.7mm And Cable Length 1-5m Or Customized from wholesalers
    • Buy cheap Thermocouple Cable For High Temperature Measurement Outside Dia 0.5-12.7mm And Cable Length 1-5m Or Customized from wholesalers
    • Buy cheap Thermocouple Cable For High Temperature Measurement Outside Dia 0.5-12.7mm And Cable Length 1-5m Or Customized from wholesalers

    Thermocouple Cable For High Temperature Measurement Outside Dia 0.5-12.7mm And Cable Length 1-5m Or Customized

    Ask Lasest Price
    Brand Name : LEADKIN
    Model Number : LK-K
    Certification : ISO9001, IATF16949, CE
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1,000,000M/year
    Delivery Time : 2-7 working days
    • Product Details
    • Company Profile

    Thermocouple Cable For High Temperature Measurement Outside Dia 0.5-12.7mm And Cable Length 1-5m Or Customized

    Quick Details:

    Type: K/N/E/J/T/S/R/B

    Place of Origin: Zhejiang, China (Mainland)

    Accuracy: I-0.4%t, II-0.75%t, III-1.5%t

    Core number: 2,3,4,6

    Inorganic mineral insulating lead material: Ni, Cu

    Insulator: 99.6% high purity MgO

    Certificate:ISO9001, IATF16949, CE

    Application: connecting with thermocouple and instrument machine

    Sheath material: 0Cr18Ni10Ti, SS304S,SS316L,SS316, Cu

    Sheath Dia(mm): φ3.0, φ4.0, φ6.0, φ8.0


    Type for Sheath Wire Type K:

    Product NameCodeTypeShaeth MaterialOutside Dia.Temperature
    NiCr-NiSi /NiCr-NiAlKKKSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    SS310 Inconel6000.5-1.0500
    1.5-3.2800
    4.0-6.4900
    8.0-12.71000
    NiCrSi-NiSiNKNSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    SS310 Inconel6000.5-1.0500
    1.5-3.2800
    4.0-6.4900
    8.0-12.71000
    NiCr-KonstantanEKESS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    Fe-KonstantanJKJSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    Cu-KonstantanTKTSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    RhPt10-PhSKSInconel6006.0-12.71100

    Different temperature measuring media and service conditions have an impact on the service life and temperature range of armored thermocouples, the data in the table is only recommended data.


    Accuracy for Sheath Wire Type K

    TypeClass IClass II
    AccuracyTemp.RangeAccuracyTemp.Range
    K±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-1000℃±0.75%375℃-1000℃
    N±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-1000℃±0.75%375℃-1000℃
    E±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-800℃±0.75%375℃-800℃
    J±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-800℃±0.75%375℃-800℃
    T±0.5℃-40~125℃±1.0℃-40~125℃
    ±0.4%125℃-350℃±0.75%125℃-350℃
    S0-1100℃±1.0℃0-1100℃±1.5℃

    About this product:

    Thermocouple cables, also known as thermocouple extension cables or thermocouple lead wires, are specialized cables designed to connect thermocouples to measuring instruments, such as temperature controllers, data loggers, or digital displays. They are essential for accurate temperature measurement in various industrial, scientific, and commercial applications.

    Key Aspects of Thermocouple Cables:

    Material Compatibility:

    Thermocouple cables are made from the same materials as the thermocouple itself to ensure accurate readings. For example, a Type K thermocouple (Chromel-Alumel) must use a Type K extension cable.

    Temperature Range:

    Depending on the thermocouple type, the cables can operate over different temperature ranges. The cable's insulation material will also determine its maximum operating temperature.

    Insulation Types:

    Common insulation materials include PVC, Teflon, and silicone, each with different temperature ratings and chemical resistances. The choice of insulation depends on the installation environment.


    Applications :

    • Solid waste incinerators
    • Sintering powdered metals
    • Firing ceramic materials
    • Gas or oil fired furnaces
    • Fuel fired heat exchangers
    • Box furnaces
    • Nuclear or hydrocarbon based energy plants
    • And many more...

    Product Pictures:


    Company Information:

    A. Main Products


    Thermocouple Cable For High Temperature Measurement Outside Dia 0.5-12.7mm And Cable Length 1-5m Or Customized


    B. Package

    We add heat shrink tubing and plastic film to make sure high insulated resistance.

    Except marking notes, we also have pass card and test report for every coil cable.


    Thermocouple Cable For High Temperature Measurement Outside Dia 0.5-12.7mm And Cable Length 1-5m Or Customized

    C. Mi cable Production line

    We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.


    Order Notice:

    1. Accurate quotation.

    2. Confirm the price, trade term, lead time, payment term etc.

    3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.

    4. Customer arranges the payment for deposit and sends us bank slip.

    5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.

    6. End Production-Mass production products photos.

    7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.

    8. The order is finished perfectly when you receive the goods and get satisfied with them .

    9. Feedback to LEADKIN about Quality , Service, Market Feedback & Suggestion. And we will do better .
