Quick Details:
Type: K/N/E/J/T/S/R/B
Place of Origin: Zhejiang, China (Mainland)
Accuracy: I-0.4%t, II-0.75%t, III-1.5%t
Core number: Single / Double
Insulator: 99.6% high purity MgO
Certificate:ISO9001, IATF16949, CE
Application: connecting with thermocouple and instrument machine
Conductor material: NiCr-NiSi, NiCrSi-NiSi, NiCr-Konstantan, Fe-Konstantan,
Cu-Konstantan
Sheath material: Inconel600, 0Cr18Ni10Ti, SS304S,SS316L, SS310,SS316,GH3030, GH3039, GH747
Sheath Dia(mm): 0.5mm to 12.7mm :φ0.5,φ1.0, φ1.5(1.6), φ2.0,
φ3.0(3.2),φ4.0,φ5.0(4.8),φ6.0(6.4),φ8.0,φ12.7
Type for Sheath Wire Type K:
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| SS310 Inconel600 | 0.5-1.0 | 500 |
| 1.5-3.2 | 800 |
| 4.0-6.4 | 900 |
| 8.0-12.7 | 1000 |
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| SS310 Inconel600 | 0.5-1.0 | 500 |
| 1.5-3.2 | 800 |
| 4.0-6.4 | 900 |
| 8.0-12.7 | 1000 |
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Different temperature measuring media and service conditions have
an impact on the service life and temperature range of armored
thermocouples, the data in the table is only recommended data.
Accuracy for Sheath Wire Type K
| Type | Class I | Class II |
| Accuracy | Temp.Range | Accuracy | Temp.Range |
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ |
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ |
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ |
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ |
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ |
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ |
About this product:
Armored thermocouple cable material is a solid composite made from a combination of thermocouple
wires,inorganic mineral insulating materials,and metal sheaths.It
is a key material for manufacturing armored thermocouples and is
widely used in various industrial sectors and scientific and
technological fields.
Characteristics:Small outer diameter,fast thermal response time,can be bent,long
service life,good air tightness,wide temperature measurement
range,and high pressure resistance.It can be used under conditions
of narrow and curved installation pipelines.
Applicable temperature range:-200°C to 1300°C(optional).Suitable
for various occasions with accuracy grades of 0.4%t and 0.75%t.
Thermocouple armor materials:K,N,E,J,T,S,R,B types,can be used in pairs or in duplicate.The
outer sheath diameter ranges from Φ0.5 to Φ12.7,with a variety of
outer sheath materials available."
Please note that"%t"is likely a placeholder for a unit or a
specific term that was not clear from the context.If it refers to a
unit of measurement or a specific term,it may need to be replaced
with the appropriate term in English.
Key Features
- Fire Resistance: MICs are highly resistant to fire, making them
suitable for use in areas where fire safety is a concern. They do
not produce toxic fumes when exposed to fire.
- Temperature Resistance: These cables can operate effectively in
extreme temperatures, often ranging from -200°C to over 1000°C,
depending on the specific design and materials used.
- Durability: The robust construction of MICs makes them resistant to
moisture, chemicals, and mechanical stresses, ensuring a long
service life.
- Low Smoke Emission: In the event of a fire, MICs emit minimal
smoke, which is crucial for maintaining visibility and safety
during emergencies.
Applications
- Power Distribution: Used in power plants, substations, and
industrial facilities for power transmission and distribution.
- Fire Alarm Systems: Ideal for fire alarm and emergency lighting
systems due to their fire-resistant properties.
- Instrumentation: Commonly used in instrumentation and control
systems, especially in environments with high temperatures or harsh
conditions.
- Marine and Offshore: Suitable for use in marine applications where
exposure to saltwater and harsh weather conditions is a factor.

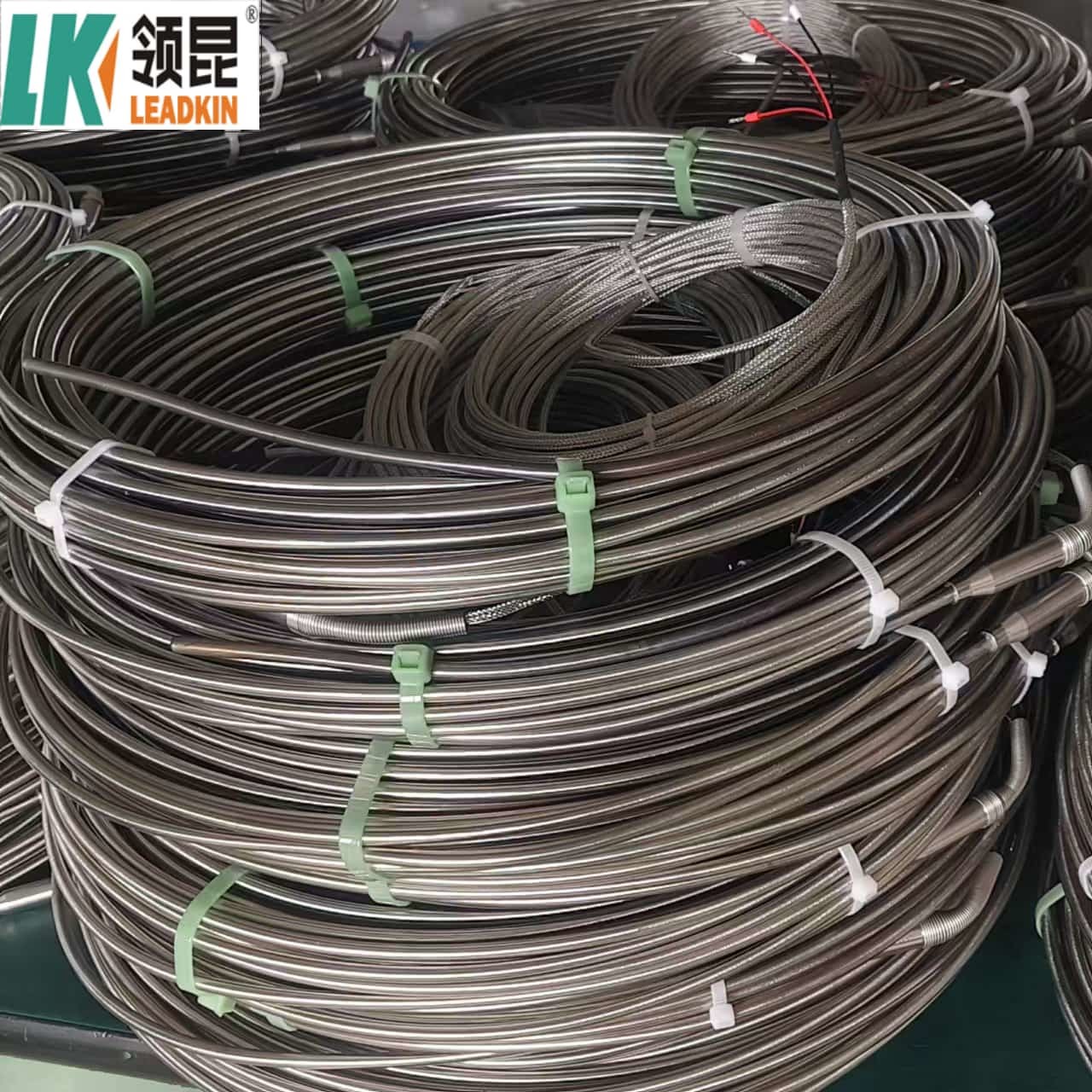

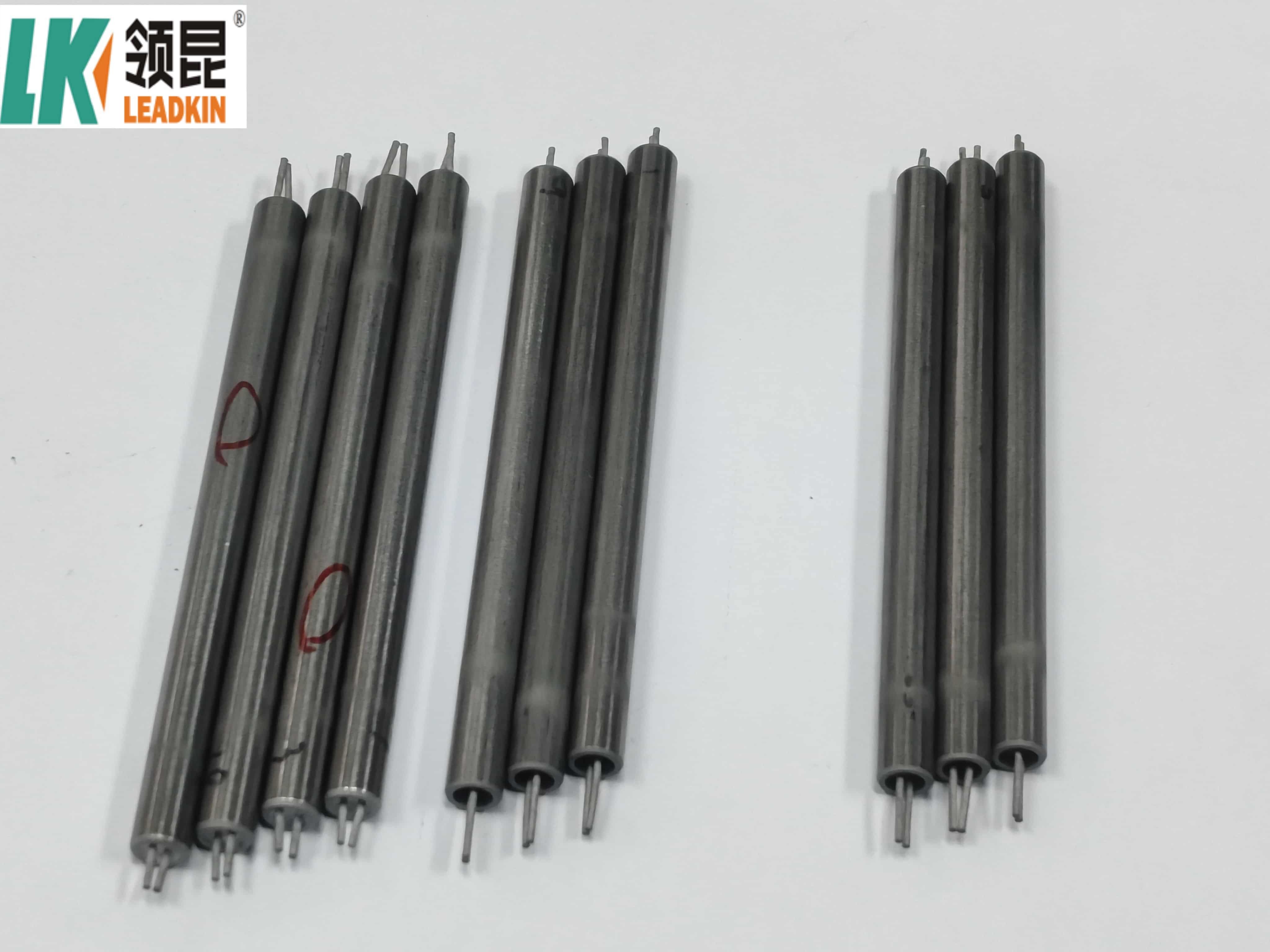

Product Pictures
