    Metal Mineral Insulated Heating Thermocouple Cable Customsized

    Ask Lasest Price
    Brand Name : LEADKIN
    Model Number : LK-K
    Certification : ISO,
    Price : USD 0.5-6.0/M
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1,000,000M/year
    Delivery Time : 2-7 working days
    • Product Details
    • Company Profile

    Metal Mineral Insulated Heating Thermocouple Cable Customsized

    Customsized Metal Mineral Insulated Heating Cable Thermocouple Cable


    Quick Details:

    Name:incl600 ss310 ss316 Sheathed Mi Cable for thermocouple probe

    Type: K,J,E,T,N

    Conductor material: NiCr-NiAl

    Insulator: 99.6% high purity MgO

    Core number: 2, 4

    Sheath material: SS321(SS304), SS316, SS310, Inconel600

    Dia(mm): 0.5mm to 12.7mm


    • Fireproof: Mi cable will not burn, or support combustion. By continuing to function when exposed to fire, it maintains vital emergency services. The inorganic bare cable will not emit smoke, toxic gas propagate flame.
    • Wiring ad Cable and Conduit Combined: The cable sheath provides an excellent earthing medium and core protection, yet the overall diameter is smaller than other types of cables with equivalent current ratings and it is sufficiently pliable to permit intricate routing.
    • Pliable: MICC MI cable is fully annealed and consequently extremely malleable, enabling it to be easily bent to follow intricate shapes without detriment to its electrical characteristics.
    • Inherent Flameproof Barrier: MICC MI cable has a solid construction with a non-flammable sheath. The highly compacted insulation will resist the transmission of vapours, gases or flames between items of equipment connected by the cable.

    Type for Sheath Wire Type K

    Product NameCodeTypeShaeth MaterialOutside Dia.Temperature
    NiCr-NiSi /NiCr-NiAlKKKSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    SS310 Inconel6000.5-1.0500
    1.5-3.2800
    4.0-6.4900
    8.0-12.71000
    NiCrSi-NiSiNKNSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    SS310 Inconel6000.5-1.0500
    1.5-3.2800
    4.0-6.4900
    8.0-12.71000
    NiCr-KonstantanEKESS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    Fe-KonstantanJKJSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    Cu-KonstantanTKTSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    RhPt10-PhSKSInconel6006.0-12.71100

    Accuracy for Sheath Wire Type K


    TypeClass IClass II
    AccuracyTemp.RangeAccuracyTemp.Range
    K±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-1000℃±0.75%375℃-1000℃
    N±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-1000℃±0.75%375℃-1000℃
    E±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-800℃±0.75%375℃-800℃
    J±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-800℃±0.75%375℃-800℃
    T±0.5℃-40~125℃±1.0℃-40~125℃
    ±0.4%125℃-350℃±0.75%125℃-350℃
    S0-1100℃±1.0℃0-1100℃±1.5℃

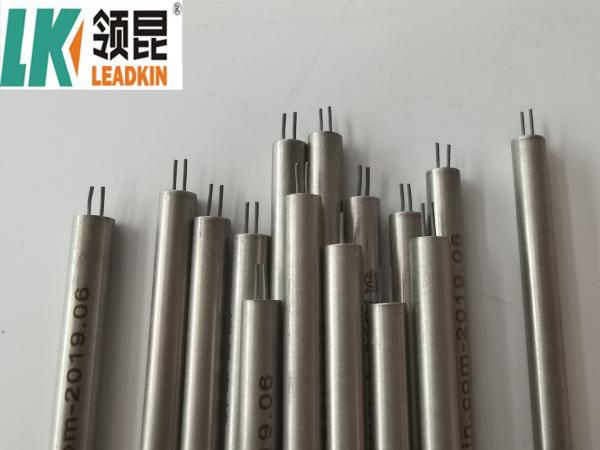

    Product Pictures



    Company Information:

    A. Main Products


    B. Package


    We add heat shrink tubing and plastic film to make sure high insulated resistance.

    Except marking notes, we also have pass card and test report for every coil cable.




    C. Mi cable Production line

    We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.


    1.Assembly

    2.Drawing

    3.Annealing

    4. Polishing


    5.Test


    6. Mi cable in stock


    FAQ:


    1. Accurate quotation.
    2. Confirm the price, trade term, lead time, payment term etc.
    3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.
    4. Customer arranges the payment for deposit and sends us bank slip.
    5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
    6. End Production-Mass production products photos.
    7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.
    8. The order is finished perfectly when you receive the goods and get satisfied with them .
    9. Feedback to LEADKIN about quality, service, market feedback & suggestion. And we will do better .
