4 Core Mineral Insulated Thermocouple Compensating Cable MgO 99.6 SS310S

Ningbo Leadkin Instrument Complete Sets of Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 4 Core Mineral Insulated Thermocouple Compensating Cable MgO 99.6 SS310S from wholesalers

    Buy cheap 4 Core Mineral Insulated Thermocouple Compensating Cable MgO 99.6 SS310S from wholesalers
    • Buy cheap 4 Core Mineral Insulated Thermocouple Compensating Cable MgO 99.6 SS310S from wholesalers

    4 Core Mineral Insulated Thermocouple Compensating Cable MgO 99.6 SS310S

    Ask Lasest Price
    Brand Name : LEADKIN
    Model Number : LK-K
    Certification : ISO,
    Price : USD 0.5-6.0/M
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1,000,000M/year
    Delivery Time : 2-7 working days
    • Product Details
    • Company Profile

    4 Core Mineral Insulated Thermocouple Compensating Cable MgO 99.6 SS310S

    Mineral insulated cable is ideally suited to solve many difficult applications. The mineral insulation available provides excellent high temperature dielectric strength to ensure signals are carried faithfully to the instrumentation or controls.The outer sheath can be made using any malleable metal in a wide range of diameters containing single or multiple wires. Easily formed or bent, it can accommodate virtually any configuration. The outer sheath protects the thermocouple or thermocouple extension wires from oxidation and hostile environments that quickly destroy unprotected wire. Available insulation provides excellent high temperature dielectric strength to ensure that signals are transmitted to instrumentation or controls.


    Quick Details:

    Name:4 Cores Stainless Steel Sheathed MI Cable Mineral Insulated Cable For Thermocouple

    Type: K

    Conductor material: NiCr-NiSi

    Insulator: 99.6% high purity MgO

    Core number: 2, 4

    Sheath material: Inconel600, Nicrobell

    Dia(mm): 0.25mm to 12.7mm

    Application: connecting with thermocouple and instrument machine

    Place of Origin: Zhejiang, China (Mainland)

    Certificate: ISO,CE


    Type for Sheath Wire Type K

    Product NameCodeTypeShaeth MaterialOutside Dia.Temperature
    NiCr-NiSi /NiCr-NiAlKKKSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    SS310 Inconel6000.5-1.0500
    1.5-3.2800
    4.0-6.4900
    8.0-12.71000
    NiCrSi-NiSiNKNSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    SS310 Inconel6000.5-1.0500
    1.5-3.2800
    4.0-6.4900
    8.0-12.71000
    NiCr-KonstantanEKESS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    Fe-KonstantanJKJSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    Cu-KonstantanTKTSS304 SS3160.5-1.0400
    1.5-3.2600
    4.0-8.0800
    RhPt10-PhSKSInconel6006.0-12.71100

    Accuracy for Sheath Wire Type K


    TypeClass IClass II
    AccuracyTemp.RangeAccuracyTemp.Range
    K±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-1000℃±0.75%375℃-1000℃
    N±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-1000℃±0.75%375℃-1000℃
    E±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-800℃±0.75%375℃-800℃
    J±1.5℃-40~375℃±2.5℃-40~375℃
    ±0.4%375℃-800℃±0.75%375℃-800℃
    T±0.5℃-40~125℃±1.0℃-40~125℃
    ±0.4%125℃-350℃±0.75%125℃-350℃
    S0-1100℃±1.0℃0-1100℃±1.5℃

    Product Pictures

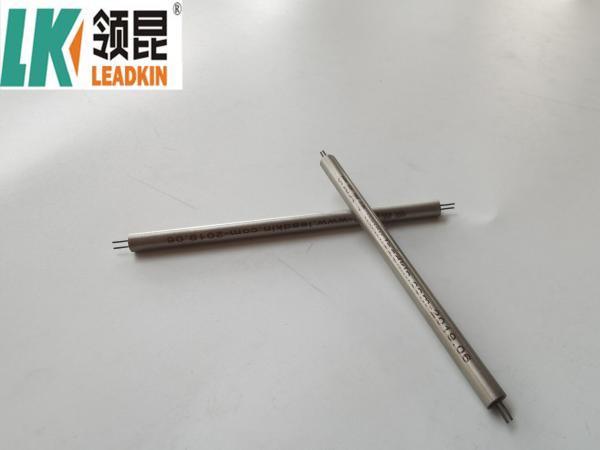

    4 Core Mineral Insulated Thermocouple Compensating Cable MgO 99.6 SS310S


    Company Information:

    A. Main Products


    B. Package


    We add heat shrink tubing and plastic film to make sure high insulated resistance.

    Except marking notes, we also have pass card and test report for every coil cable.


    C. Mi cable Production line

    We have high - quality professional products, as well as advanced product lines and equipments. All of the products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Along the increasing market demands, we continuously satisfy customers by updating products to improve prouduction systems, improve quality.


    1.Assembly

    2.Drawing

    3.Annealing

    4. Polishing


    5.Test


    6. Mi cable in stock
