Quick detail
Name:Ss310 SS316 Mineral Insulated Thermocouple Cable 2 Cores Type T
Type: K,N,E,J,T,R,B,S,Pt100
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: Inconel600
Dia(mm): 3.0mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Place of Origin: Zhejiang, China (Mainland)
Eco-friendly: Yes
MOQ: 100m
Certificate: ISO
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T, Western Union, L/C
Advantages of mineral insulated thermocouple cables over other
conventional thermocouple cables:
Wide temperature range
Excellent uniformity
Easy handling
Longer product life time
Mechanical strength
Insulation material
Type for Sheath Wire Type K
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| SS310 Inconel600 | 0.5-1.0 | 500 |
| 1.5-3.2 | 800 |
| 4.0-6.4 | 900 |
| 8.0-12.7 | 1000 |
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| SS310 Inconel600 | 0.5-1.0 | 500 |
| 1.5-3.2 | 800 |
| 4.0-6.4 | 900 |
| 8.0-12.7 | 1000 |
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
Accuracy for Sheath Wire Type K
| Type | Class I | Class II |
| Accuracy | Temp.Range | Accuracy | Temp.Range |
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ |
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ |
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ |
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ |
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ |

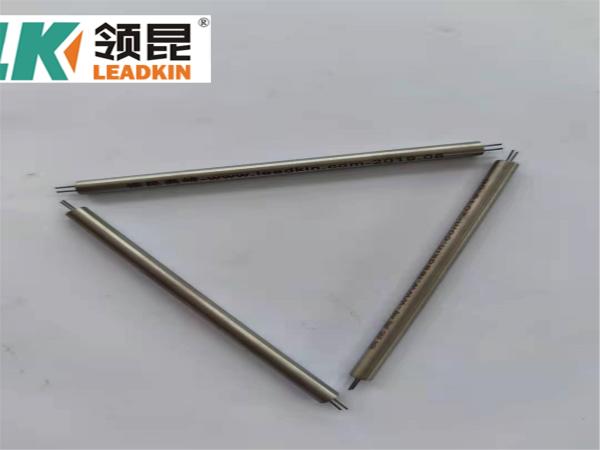

Product Pictures
Order Notice:
| 1. Accurate quotation. |
| 2. Confirm the price, trade term, lead time, payment term etc. |
| 3. LEADKIN sales send the Proforma Invoice with LEADKIN seal. |
| 4. Customer arranges the payment for deposit and sends us bank
slip. |
| 5. Middle Production-send photos to show the production line which
you can see your products in . Confirm the estimated delivery time
again. |
| 6. End Production-Mass production products photos. |
| 7. Clients make payment for balance and LEADKIN ships the goods.
Inform the tracking number and check the status for clients. |
| 8. The order is finished perfectly when you receive the goods and
get satisfied with them . |
| 9. Feedback to LEADKIN about Quality , Service, Market Feedback &
Suggestion. And we will do better . |
