Quick Details:
Name:Factory direct supply mineral insulated cables with low price
Type: K,N,E,J,T,R,B,S,Pt100
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, Inconel600, Nicrobell
Dia(mm): 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Place of Origin: Zhejiang, China (Mainland)
Eco-friendly: Yes
MOQ: 100m
Certificate: ISO
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T, Western Union, L/C
Our mi cable advantages:
Environment-friendly: no pickling clean armored cable
Ultra-high density: nuclear grade 2500mg/cm3
Thick wall thick wire: 40% thicker than the standard of IEC and GB
Solution heat treatment:Improve the strength, hardness, wear
resistance, corrosion resistance
Type for Sheath Wire Type K
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| SS310 Inconel600 | 0.5-1.0 | 500 |
| 1.5-3.2 | 800 |
| 4.0-6.4 | 900 |
| 8.0-12.7 | 1000 |
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| SS310 Inconel600 | 0.5-1.0 | 500 |
| 1.5-3.2 | 800 |
| 4.0-6.4 | 900 |
| 8.0-12.7 | 1000 |
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Accuracy for Sheath Wire Type K
| Type | Class I | Class II |
| Accuracy | Temp.Range | Accuracy | Temp.Range |
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ |
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ |
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ |
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ |
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ |
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ |

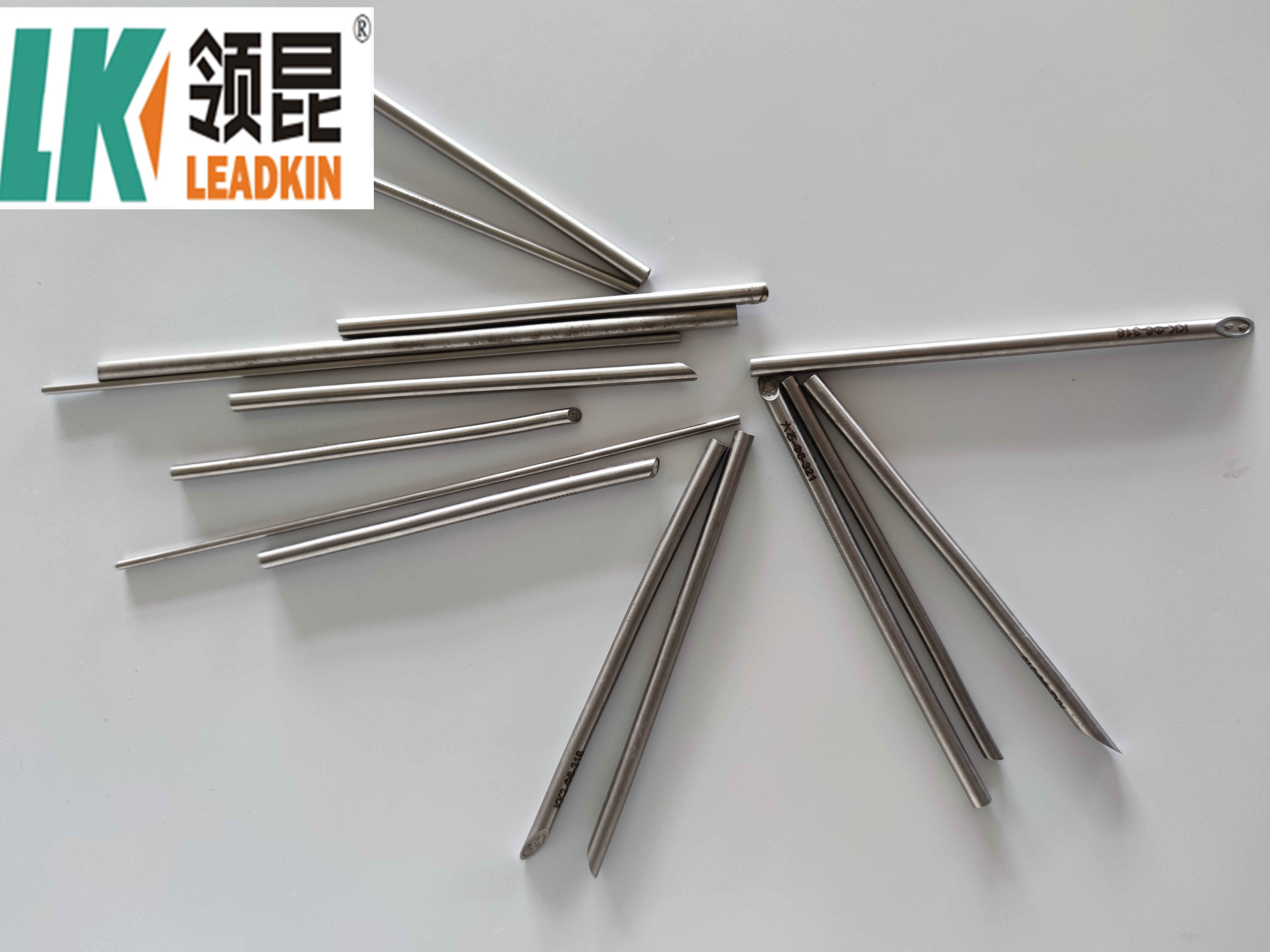

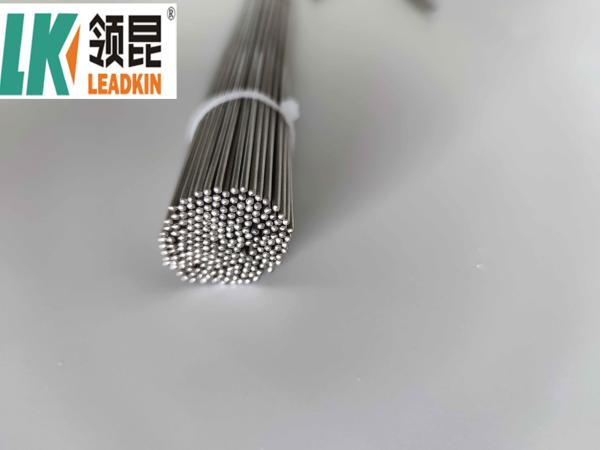

Product Pictures
Company Information:
A. Main Products
B. Package
We add heat shrink tubing and plastic film to make sure high
insulated resistance.
Except marking notes, we also have pass card and test report for
every coil cable.
C. Mi cable Production line
We have high - quality professional products, as well as advanced
product lines and equipments. All of the products comply with
international quality standards and are greatly appreciated in a
variety of different markets throughout the world.Along the
increasing market demands, we continuously satisfy customers by
updating products to improve prouduction systems, improve quality.
1.Assembly
2.Drawing
3.Annealing
4. Polishing
5.Test
6. Mi cable in stock
FAQ:
| 1. Accurate quotation. |
| 2. Confirm the price, trade term, lead time, payment term etc. |
| 3. LEADKIN sales send the Proforma Invoice with LEADKIN seal. |
| 4. Customer arranges the payment for deposit and sends us bank
slip. |
| 5. Middle Production-send photos to show the production line which
you can see your products in . Confirm the estimated delivery time
again. |
| 6. End Production-Mass production products photos. |
| 7. Clients make payment for balance and LEADKIN ships the goods.
Inform the tracking number and check the status for clients. |
| 8. The order is finished perfectly when you receive the goods and
get satisfied with them . |
| 9. Feedback to LEADKIN about quality, service, market feedback &
suggestion. And we will do better . |
