Mineral insulated metal sheathed RTD Cable, RTD MIC, has a
stainless steel or Inconel outer metal sheath with copper or Nickel
signal wire conductors. The conductor lead wires are insulated from
each other and the outer sheath by compacted magnesium oxide MgO.
Metric and standard US inch diameters are manufactured in a range
of OD sizes with 2, 3, 4 conductors. The 4 wire design is produced
in wide or standard pattern layout in various diameters. Coil
lengths of 50 to 1000 ft are typical. Metal sheath RTD cable with
nickel 201 conductors is also used as sensor hook up wire in high
temperature locations.
Omega RTD MI Cable can be supplied in cut to length MIC wire
sections for OEM sensor and probe builders. Short straight lengths
of MIC RTD MI cable from 4.25 inch to 28 inch can be cut to length
CTL. Each end of the cut to length MIC can be prepared straight cut
or with stripped lead lengths to match your RTD sensor probe
assembly requirements.
Quick detail
Name:MI Thermocouple Cable High Temperature RTD Thermocouple Cable
Thermocouple Mineral Insulated Cable
Type: Pt100,pt100,pt500...
Conductor material: Ni or Copper
Insulator: 99.6% high purity MgO
Core number:3,4,6,8
Sheath material: SS321(SS304), SS316
Dia(mm): 3.0mm to 12.7mm
Characteristics
The sheath cable are small outer diameter, quick heat responsive
period, can be bent , long service life, fine air-tight, wide
temperature measure range, high voltage resistant, anti-vibration,
narrow mounting pipeline and can be used on bending condition.
Nominal Dimensions:
| Out Dia. | Length | Sheath Thickness | Wire Dia. |
| 3 | 90 | 0.38-0.48 | 0.38-0.42 |
| 3.2 | 90 | 0.48-0.58 | 0.39-0.43 |
| 4 | 80 | 0.52-0.62 | 0.50-0.60 |
| 4.8 | 60 | 0.73-0.83 | 0.58-0.68 |
| 5 | 50 | 0.78-0.88 | 0.60-0.70 |
| 6 | 40 | 0.98-1.08 | 0.70-0.80 |
| 6.4 | 30 | 1.05-1.15 | 0.73-0.83 |
| 8 | 20 | 1.30-1.44 | 0.80-1.10 |

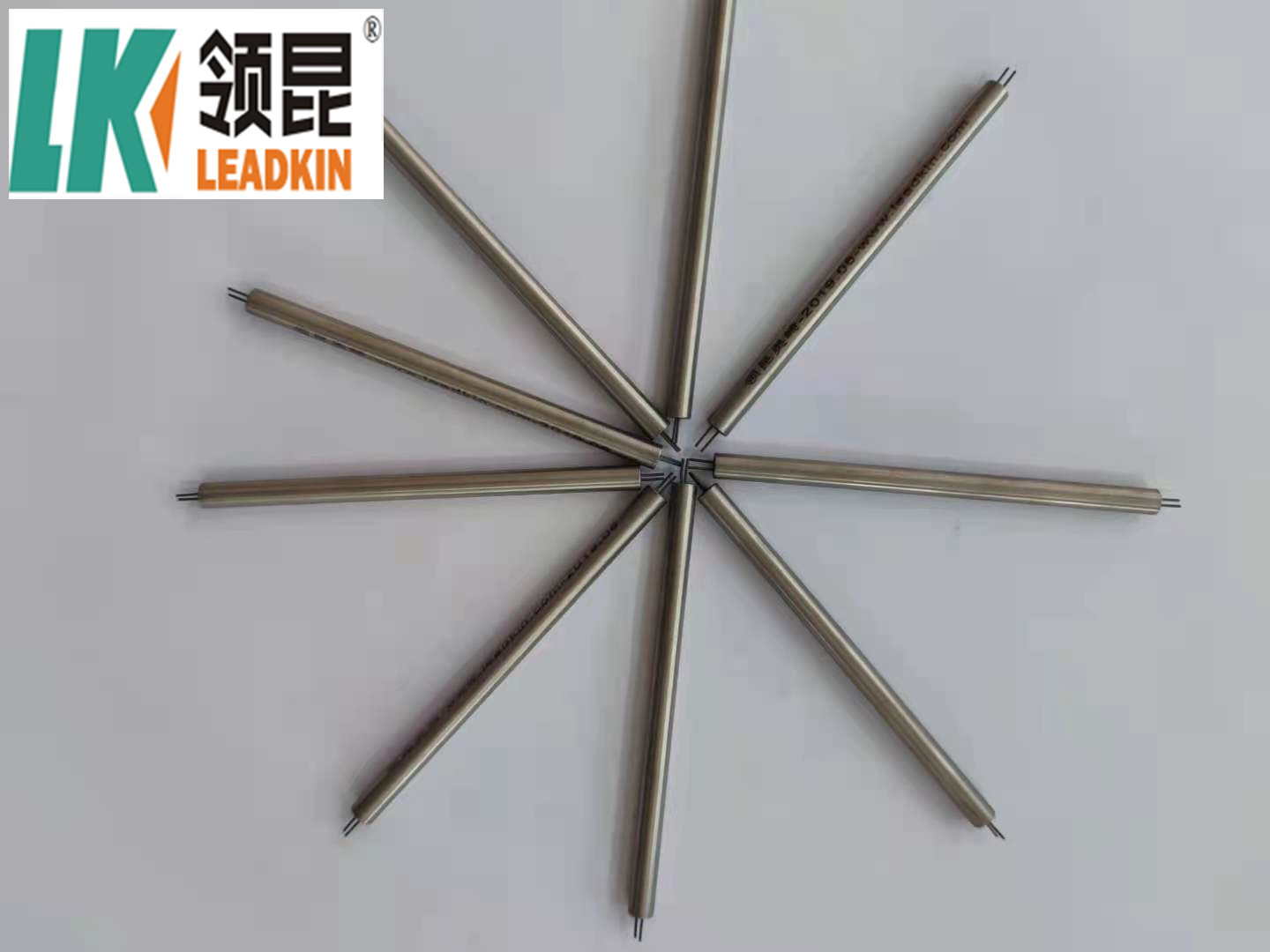

Product Pictures
Company Information:
A. Main Products
B. Package
We add heat shrink tubing and plastic film to make sure high
insulated resistance.
Except marking notes, we also have pass card and test report for
every coil cable.
C. Mi cable Production line
We have high - quality professional products, as well as advanced
product lines and equipments. All of the products comply with
international quality standards and are greatly appreciated in a
variety of different markets throughout the world.Along the
increasing market demands, we continuously satisfy customers by
updating products to improve prouduction systems, improve quality.
1. Assembly
2. Drawing
3. Annealing
4. Polishing
5. Test
6. Mi cable in stock
