RTD PT100 Thermocouple Resister Temperature Sensor Waterproof Temp
Probe K/J Thermocouple
Because a thermocouple can take many shapes and forms, it is
important to understand how to correctly select the right sensor.
The most commonly criteria used to make that choice are the
temperature range, the chemical resistance, the abrasion and
vibration resistance and the installation requirements.
Installation requirements would also dictate your choice of a
thermocouple probe.
There are different types of thermocouples and their applications
may vary. An exposed thermocouple will work best when high response
times are required, but an ungrounded thermocouple is better in
corrosive environments.
Quick Details:
Name: EGT Probe Exhaust Gas Temperature probe for auto
Type: K,N,E,J,T,R,B,S,Pt100
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, Inconel600, Nicrobell
Dia(mm): 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
Place of Origin: Zhejiang, China (Mainland)
Eco-friendly: Yes
MOQ: 100m
Certificate: ISO
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T, Western Union, L/C
Type for Sheath Wire Type K
| Product Name | Code | Type | Shaeth Material | Outside Dia. | Temperature |
| NiCr-NiSi /NiCr-NiAl | KK | K | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| SS310 Inconel600 | 0.5-1.0 | 500 |
| 1.5-3.2 | 800 |
| 4.0-6.4 | 900 |
| 8.0-12.7 | 1000 |
| NiCrSi-NiSi | NK | N | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| SS310 Inconel600 | 0.5-1.0 | 500 |
| 1.5-3.2 | 800 |
| 4.0-6.4 | 900 |
| 8.0-12.7 | 1000 |
| NiCr-Konstantan | EK | E | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| Fe-Konstantan | JK | J | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| Cu-Konstantan | TK | T | SS304 SS316 | 0.5-1.0 | 400 |
| 1.5-3.2 | 600 |
| 4.0-8.0 | 800 |
| RhPt10-Ph | SK | S | Inconel600 | 6.0-12.7 | 1100 |
Accuracy for Sheath Wire Type K
| Type | Class I | Class II |
| Accuracy | Temp.Range | Accuracy | Temp.Range |
| K | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ |
| N | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-1000℃ | ±0.75% | 375℃-1000℃ |
| E | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ |
| J | ±1.5℃ | -40~375℃ | ±2.5℃ | -40~375℃ |
| ±0.4% | 375℃-800℃ | ±0.75% | 375℃-800℃ |
| T | ±0.5℃ | -40~125℃ | ±1.0℃ | -40~125℃ |
| ±0.4% | 125℃-350℃ | ±0.75% | 125℃-350℃ |
| S | 0-1100℃ | ±1.0℃ | 0-1100℃ | ±1.5℃ |

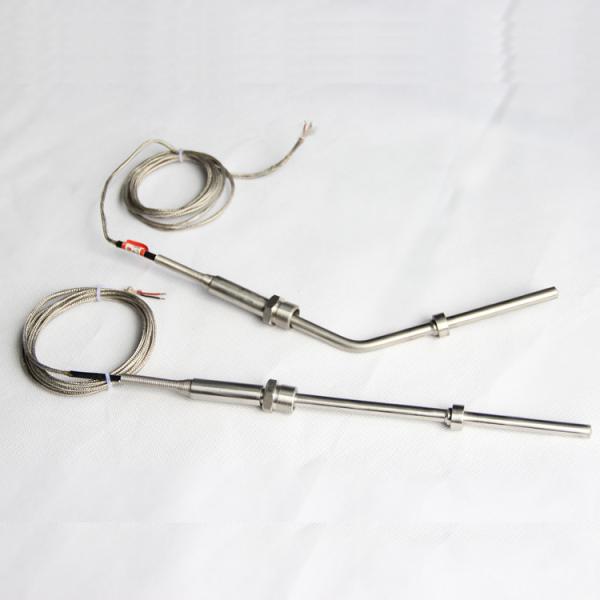

Product Pictures
Company Information:
A. Main Products
B. Package
We add heat shrink tubing and plastic film to make sure high
insulated resistance.
Except marking notes, we also have pass card and test report for
every coil cable.
C. Warehouse
We have great amount mi cable in stock. We expecting your visiting.
